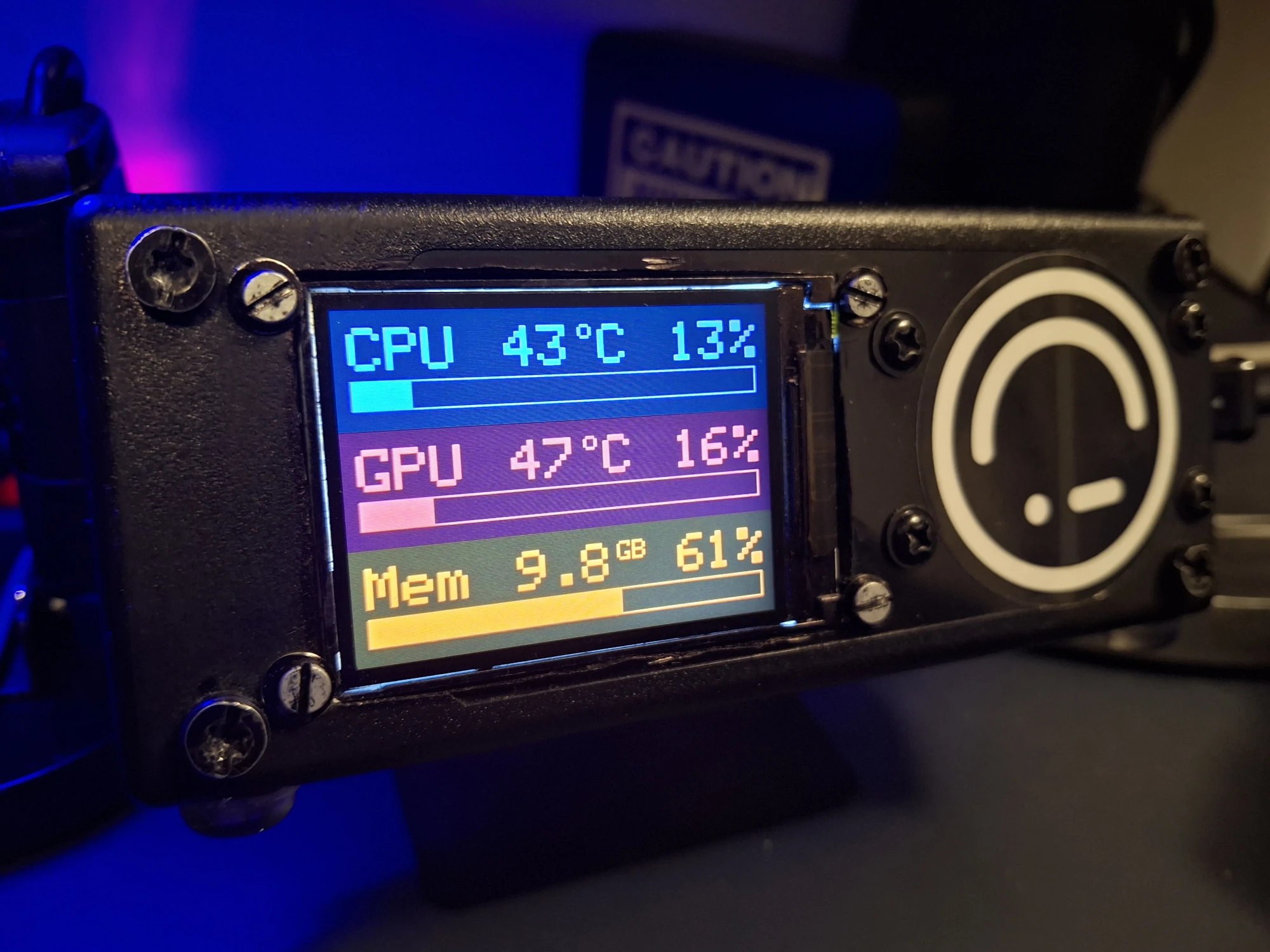

Building a PC resource monitor box with ESP8266 & color TFT LCD display

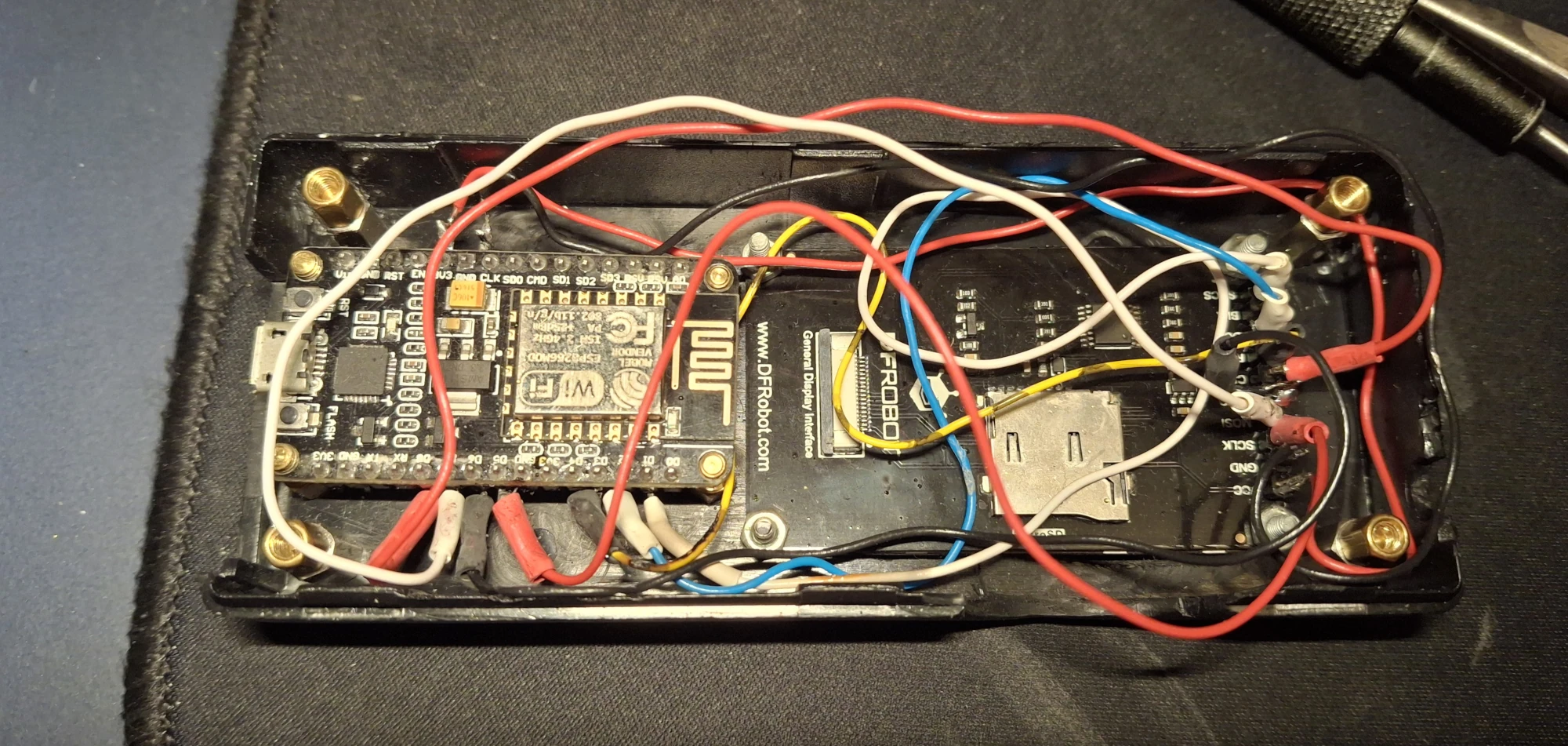

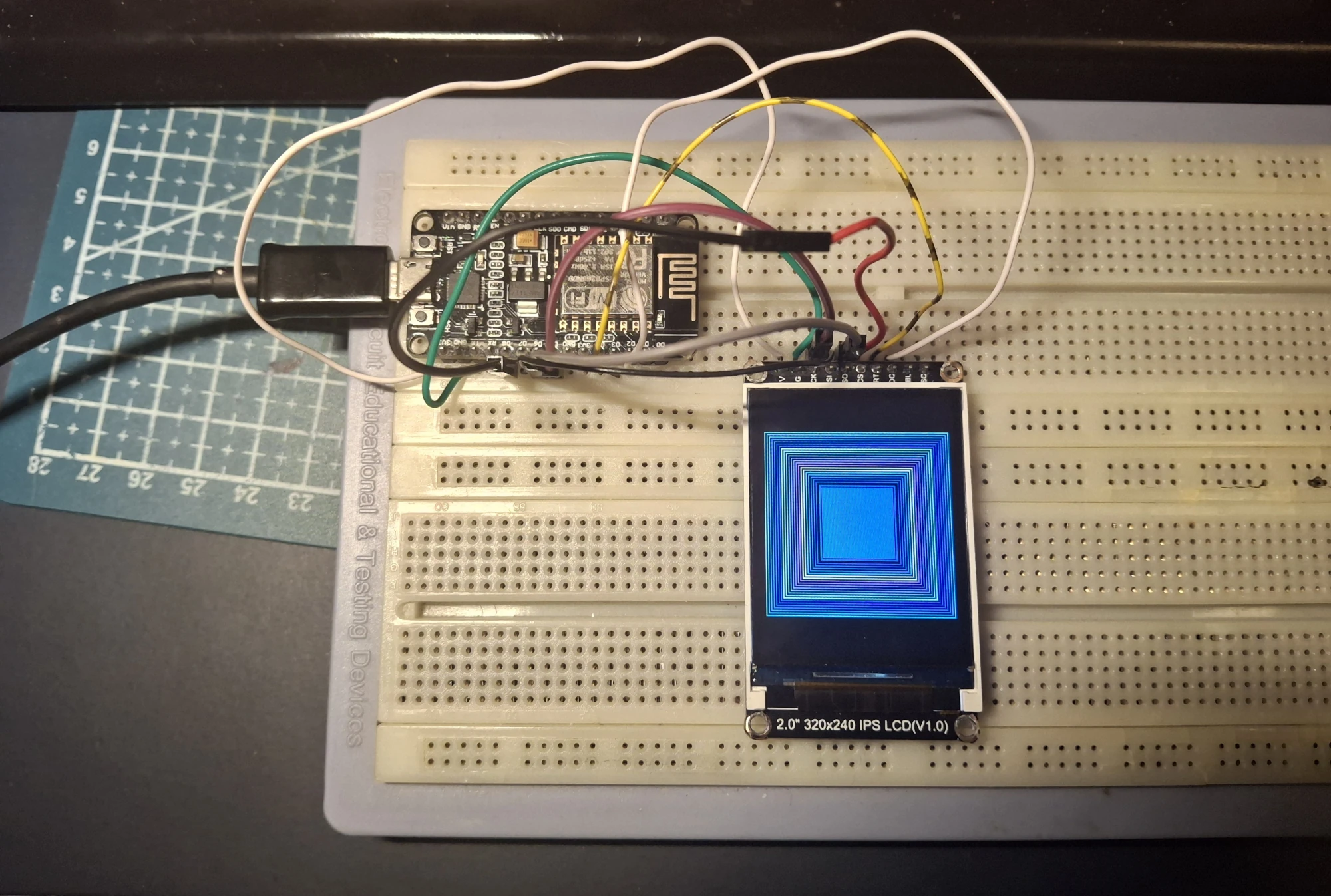

#include <DFRobot_GDL.h>

#define TFT_DC  D2
#define TFT_CS  D8
#define TFT_RST D3
#define PIN_SPI_CS D1


/**
 * @brief Constructor Constructor of hardware SPI communication
 * @param dc Command/data line pin for SPI communication
 * @param cs Chip select pin for SPI communication
 * @param rst reset pin of the screen
 */


DFRobot_ST7789_240x320_HW_SPI screen(/*dc=*/TFT_DC,/*cs=*/TFT_CS,/*rst=*/TFT_RST);
    // 240x320 px
String dataStr = "";

bool demoMode = false;
int demoIndex = 0;
String demoData[5] = {
  "32,18,45,10,48,7.7",
  "41,17,45,7,49,7.9",
  "31,6,47,1,48,7.7",
  "30,10,46,20,51,8.2",
  "32,16,47,5,50,8.0"
};


int barH = 20;
int barW = 320;
int celsiusSpace = 3; //space between temp num and celsius degree circle
int16_t paddingLeft = 10;
int16_t paddingRight = 10;
int borderW = 4;
uint16_t intelBlue = 0x033f;
uint16_t coolGreen = 0x3646;
uint16_t memOrange = 0xfb80; // 0xfb20  0xfb60
uint16_t crimsonRed = 0xf80b;

uint16_t cpuColorLight = intelBlue;
uint16_t gpuColorLight = crimsonRed;
uint16_t memColorLight = memOrange;
uint16_t cpuBgColor = 0x0022;
uint16_t gpuBgColor = 0x1801; // 0x00c0
uint16_t memBgColor = 0x1040; //0x2880

// CPU data
uint16_t cpuColorDark = cpuColorLight;
int cpuTempX = 90;
int cpuTempY = 0 + 12;
int cpuTempW = 75;
int cpuTempH = 30;
String cpuTempPrev = "0";

int cpuLoadX = 215;
int cpuLoadY = cpuTempY;
int cpuLoadW = 75;
int cpuLoadH = 30;
String cpuLoadPrev = "0";

int cpuBarX = 0;
int cpuBarY = cpuTempY+35;
int cpuBarW = 0;

// GPU data
uint16_t gpuColorDark = gpuColorLight;
int gpuTempX = cpuTempX;
int gpuTempY = 80 + 12;
int gpuTempW = cpuTempW;
int gpuTempH = cpuTempH;
String gpuTempPrev = "0";

int gpuLoadX = cpuLoadX;
int gpuLoadY = gpuTempY;
int gpuLoadW = cpuLoadW;
int gpuLoadH = cpuLoadH;
String gpuLoadPrev = "0";

int gpuBarX = cpuBarX;
int gpuBarY = gpuTempY+35;
int gpuBarW = 0;

// Memory data
uint16_t memColorDark = memColorLight;

int memUsedX = 90;
int memUsedY = 160 + 12;
int memUsedW = 93;
int memUsedH = cpuTempH;
String memUsedPrev = "00.0";

int memLoadX = cpuLoadX;
int memLoadY = memUsedY;
int memLoadW = cpuLoadW;
int memLoadH = cpuLoadH;
String memLoadPrev = "0";

int memBarX = cpuBarX;
int memBarY = memUsedY+35;
int memBarW = 0;


void setup() {
  Serial.begin(115200);
  screen.begin();
  screen.setRotation(1); // Rotate 270 degrees clockwise

  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.fillScreen(COLOR_RGB565_RED);
  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.setTextSize(8);

  screen.setTextColor(COLOR_RGB565_RED);
  screen.setCursor(0, 0);
  screen.println("Rogue");
  delay(500);
  screen.setTextColor(COLOR_RGB565_RED);
  screen.setCursor(0, 75);
  screen.println("Sensor");
  delay(500);
  screen.setTextColor(coolGreen);
  screen.setCursor(0, 150);
  screen.println("Ultra");
  delay(500);

  screen.setTextSize(3);
  screen.setCursor(200, 220);
  screen.setTextColor(COLOR_RGB565_RED);
  screen.println("v1.0.1");

  delay(1500);
  screen.setTextColor(COLOR_RGB565_RED);
  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.setTextSize(4);

  // Draw static stuff which doesn't change on updates

  // CPU static draws
  screen.fillRect(0, 0, 320, 80, cpuBgColor); // Draw CPU bg
  //screen.drawRect(0, 0, 320-borderW, 80-borderW, cpuColorLight); // CPU border
  drawBorderRect(0, 0, 320, 80, cpuColorLight, borderW);

  screen.setTextColor(cpuColorLight);
  screen.setCursor(paddingLeft, cpuTempY);
  screen.print("CPU");
  // Create fake Celsius Degree symbol with a small "o"
  screen.setTextSize(2);
  screen.setCursor(cpuTempX + cpuTempW + celsiusSpace, cpuTempY-4);
  screen.print("o");
  screen.setTextSize(4);
  screen.setCursor(cpuTempX + cpuTempW + celsiusSpace + 15, cpuTempY);
  screen.print("C");

  screen.setCursor(cpuLoadX+cpuLoadW+0, cpuLoadY);
  screen.print("%");
  screen.drawRect(cpuBarX+paddingLeft, cpuBarY, barW-paddingRight-paddingLeft, barH, cpuColorLight);
  //screen.fillRect(cpuBarX+1, cpuBarY+1, barW-2, barH-2, COLOR_RGB565_NAVY);

  // GPU static draws
  // Draw CPU bg
  screen.fillRect(0, 80, 320, 80, gpuBgColor);
  //screen.drawRect(borderW, 80+borderW, 320-borderW, 80-borderW, gpuColorLight); // GPU border
  //drawBorderRect(x, y, w, h, color, borderWidth);
  drawBorderRect(0, 80, 320, 80, gpuColorLight, borderW);

  screen.setTextColor(gpuColorLight);
  screen.setCursor(paddingLeft, gpuTempY);
  screen.print("GPU");
  screen.setTextSize(2);
  screen.setCursor(gpuTempX + gpuTempW + celsiusSpace, gpuTempY-4);
  screen.print("o");
  screen.setTextSize(4);
  screen.setCursor(gpuTempX + gpuTempW + celsiusSpace + 15, gpuTempY);
  screen.print("C");


  screen.setCursor(gpuLoadX+gpuLoadW+0, gpuLoadY);
  screen.print("%");
  screen.drawRect(gpuBarX+paddingLeft, gpuBarY, barW-paddingRight-paddingLeft, barH, gpuColorLight);
  //screen.fillRect(gpuBarX+1, gpuBarY+1, barW-2, barH-2, COLOR_RGB565_OLIVE);


  // Mem static draws
  // Draw Mem bg
  screen.fillRect(0, 160, 320, 80, memBgColor);
  //screen.drawRect(borderW, 160+borderW, 320-borderW, 80-borderW, memColorLight); // Mem border
  //drawBorderRect(x, y, w, h, color, borderWidth);
  drawBorderRect(0, 160, 320, 80, memColorLight, borderW);

  screen.setTextColor(memColorLight);
  screen.setCursor(paddingLeft, memUsedY);
  screen.print("Mem");
  screen.setTextSize(2);
  screen.setCursor(memUsedX+100, memUsedY);
  screen.print("GB");
  screen.setTextSize(4);

  screen.setCursor(memLoadX+memLoadW+0, memLoadY);
  screen.print("%");
  screen.drawRect(memBarX+paddingLeft, memBarY, barW-paddingRight-paddingLeft, barH, memColorLight);

  //dataStr = "99,99,99,99,99,99";

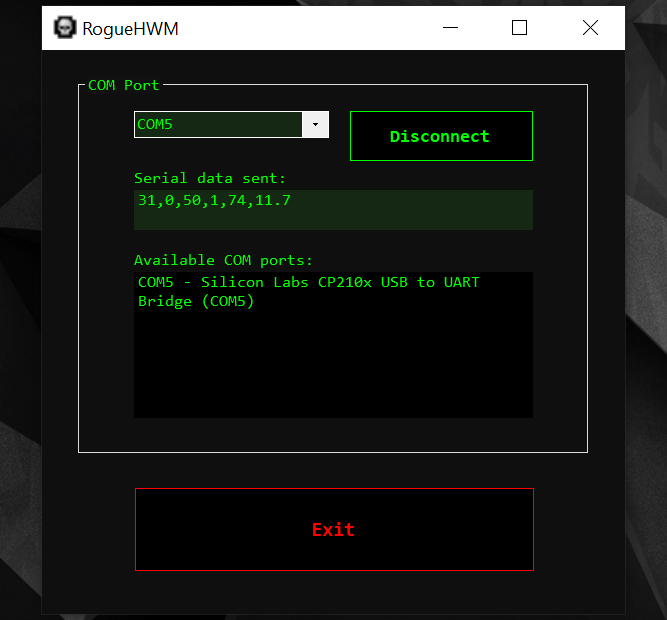

  Serial.begin(9600);  // opens serial port, sets data rate to 9600 bps
}

void loop(){
  if (Serial.available() > 0 || demoMode) {
    dataStr = Serial.readString();  //read until timeout
    dataStr.trim();                 // remove any \r \n whitespace at the end of the String

    if (dataStr.length() == 1) {
      dataStr = "0,0,0,0,0,00.0";
    }
    //Serial.print("LOL");
    Serial.println(dataStr);

    if (dataStr == "SERIAL DISCONNECT") {
      disconnectScreen();
      dataStr = "0,0,0,0,0,00.0";
    }

    if (demoMode) {
      dataStr = demoData[demoIndex];
    }

    // Get sensor values from data string
    //String getValue(String data, char separator, int index)
    char separator = ',';
    String cpuTemp = getValue(dataStr, separator, 0);
    String cpuLoad = getValue(dataStr, separator, 1);
    String gpuTemp = getValue(dataStr, separator, 2);
    String gpuLoad = getValue(dataStr, separator, 3);
    String memLoad = getValue(dataStr, separator, 4);
    String memUsed = getValue(dataStr, separator, 5);


    if (cpuLoad.toInt() > 100) {
      cpuLoad = "100";
    }

    if (gpuLoad.toInt() > 100) {
      gpuLoad = "100";
    }

    if (memLoad.toInt() > 100) {
      memLoad = "100";
    }

    String cpuTempStr = formatValueStr(cpuTemp);
    String cpuLoadStr = formatValueStr(cpuLoad);

    String gpuTempStr = formatValueStr(gpuTemp);
    String gpuLoadStr = formatValueStr(gpuLoad);

    String memLoadStr = formatValueStr(memLoad);
    String memUsedStr = formatMemUsed(memUsed);


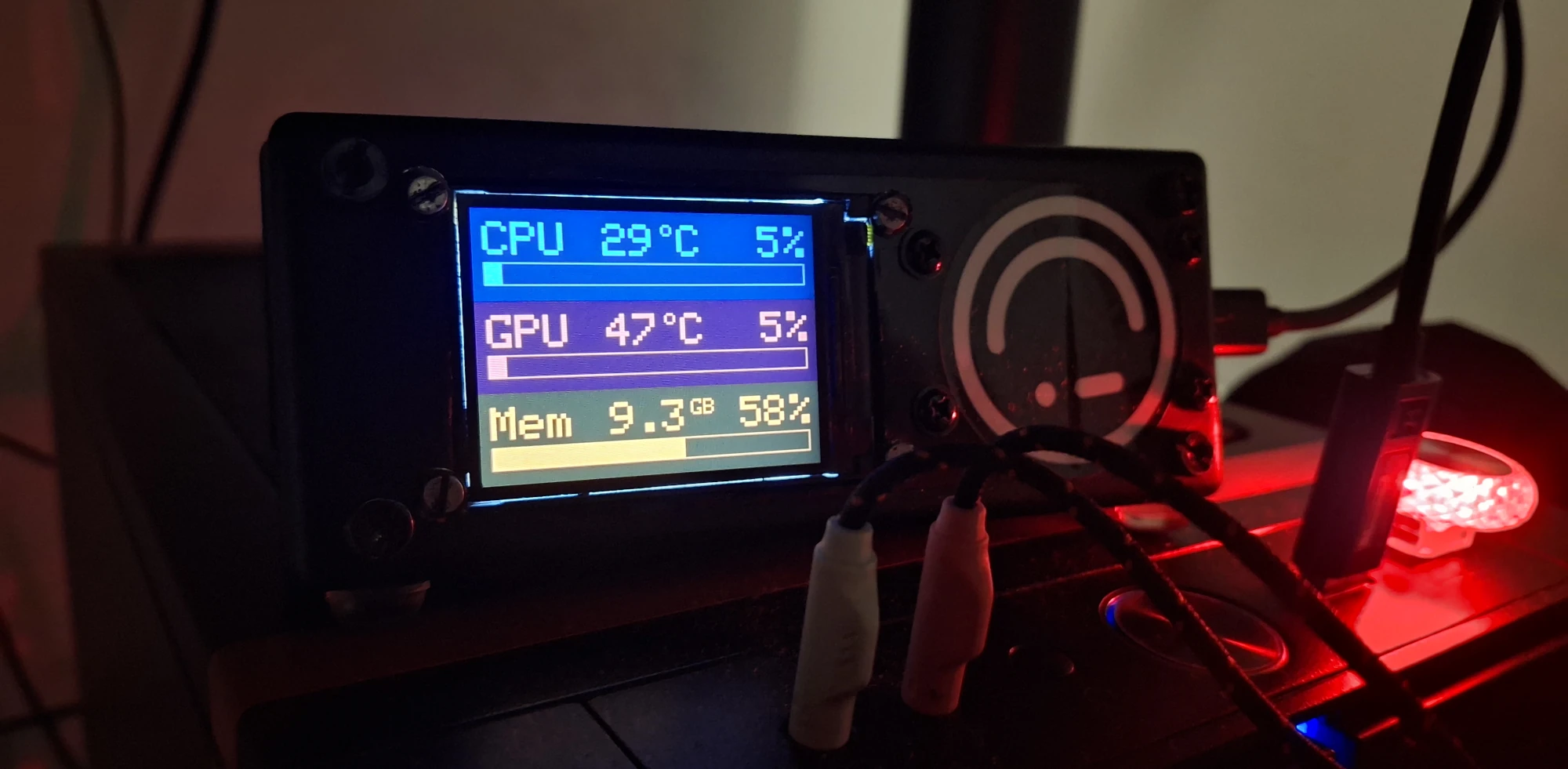

    ///////// Draw CPU values

    screen.setTextColor(cpuColorLight);
    // Update CPU temp
    if (cpuTemp != cpuTempPrev) {
      //updateNum(cpuTempStr, formatValueStr(cpuTempPrev), cpuTempX, cpuTempY, cpuTempW, cpuTempH, cpuBgColor);
      screen.fillRect(cpuTempX, cpuTempY, cpuTempW, cpuTempH, cpuBgColor);
      screen.setCursor(cpuTempX, cpuTempY);
      screen.print(cpuTempStr);
      cpuTempPrev = cpuTemp;
    }


    // Update CPU load
    if (cpuLoad != cpuLoadPrev) {
      //updateNum(cpuLoadStr, formatValueStr(cpuLoadPrev), cpuLoadX, cpuLoadY, cpuLoadW, cpuLoadH, cpuBgColor);
      screen.fillRect(cpuLoadX, cpuLoadY, cpuLoadW, cpuLoadH, cpuBgColor);
      screen.setCursor(cpuLoadX, cpuLoadY);
      screen.print(cpuLoadStr);
      cpuLoadPrev = cpuLoad;
    }


    // Update CPU bar width
    int newCpuBarW = getBarWidthPx(cpuLoad);
    rePaintBar(cpuBarW, newCpuBarW, cpuBarY, cpuColorDark, cpuBgColor);
    cpuBarW = newCpuBarW;


    ///////// Draw GPU values
    screen.setTextColor(gpuColorLight);

    // Update GPU temp
    if (gpuTemp != gpuTempPrev) {
      //updateNum(gpuTempStr, formatValueStr(gpuTempPrev), gpuTempX, gpuTempY, gpuTempW, gpuTempH, gpuBgColor);
      screen.fillRect(gpuTempX, gpuTempY, gpuTempW, gpuTempH, gpuBgColor);
      screen.setCursor(gpuTempX, gpuTempY);
      screen.print(gpuTempStr);
      gpuTempPrev = gpuTemp;
    }


    // Update GPU load
    if (gpuLoad != gpuLoadPrev) {
      //updateNum(gpuLoadStr, formatValueStr(gpuLoadPrev), gpuLoadX, gpuLoadY, gpuLoadW, gpuLoadH, gpuBgColor);
      screen.fillRect(gpuLoadX, gpuLoadY, gpuLoadW, gpuLoadH, gpuBgColor);
      screen.setCursor(gpuLoadX, gpuLoadY);
      screen.print(gpuLoadStr);
      gpuLoadPrev = gpuLoad;
    }


    // Update GPU bar width
    int newGpuBarW = getBarWidthPx(gpuLoad);
    rePaintBar(gpuBarW, newGpuBarW, gpuBarY, gpuColorDark, gpuBgColor);
    gpuBarW = newGpuBarW;


    ///////// Draw Mem values
    screen.setTextColor(memColorLight);
    //screen.setTextColor(gpuColorLight,COLOR_RGB565_GREEN);
    // Update Mem used
    if (memUsed != memUsedPrev) {
      //updateNum(memUsedStr, formatMemUsed(memUsedPrev), memUsedX, memUsedY, memUsedW, memUsedH, memBgColor);
      screen.fillRect(memUsedX, memUsedY, memUsedW, memUsedH, memBgColor);
      screen.setCursor(memUsedX, memUsedY);
      screen.print(memUsedStr);
      memUsedPrev = memUsed;
    }

    // Update Mem load number
    if (memLoad != memLoadPrev) {
      //updateNum(memLoadStr, formatValueStr(memLoadPrev), memLoadX, memLoadY, memLoadW, memLoadH, memBgColor);
      screen.fillRect(memLoadX, memLoadY, memLoadW, memLoadH, memBgColor);
      screen.setCursor(memLoadX, memLoadY);
      screen.print(memLoadStr);
      memLoadPrev = memLoad;
    }


    // Update Mem bar width
    int newMemBarW = getBarWidthPx(memLoad);
    rePaintBar(memBarW, newMemBarW, memBarY, memColorDark, memBgColor);
    memBarW = newMemBarW;

  }

  if (demoMode) {
    demoIndex += 1;
    if (demoIndex >= 5) {
      demoIndex = 0;
    }
    delay(1000);
  }

  //delay(200);
}


//  updateNum(cpuTempStr, formatValueStr(cpuTempPrev), cpuTempX, cpuTempY, cpuTempW, cpuTempH);
// Update only parts of number which have changed
void updateNum(String newValue, String oldValue, int x, int y, int w, int h, int bgColor) {
  // Check each character on number string
  //int inc = w/newValue.length();
  int inc = 15;
  int xPos = x;

  //Serial.println(inc);
  Serial.println(newValue);
  Serial.println(oldValue);

  String oldValueLen = String(oldValue.length());
  String newValueLen = String(newValue.length());
  Serial.println("oldValueLen: <" + oldValueLen + ">") ;
  Serial.println("newValueLen: <" + newValueLen + ">") ;
  //Serial.println("newValue.length(): " + String(newValue.length() );

  String oldChar;
  String newChar;

  for (int i = 0; i < newValue.length(); i++) {
    //from.charAt(idx)
    oldChar = oldValue.substring(i, i+1);
    newChar = newValue.substring(i, i+1);

    Serial.println("oldChar: <" + oldChar + ">, newChar: <" + newChar + ">");

    if (oldChar != newChar) {
      // Clear old character
      screen.fillRect(xPos, y, inc, h, COLOR_RGB565_BLACK); // bgColor
      // Draw new character
      screen.setCursor(xPos, y);

      screen.print(newChar);


    }
    xPos += (inc * (i+1));
  }


  //updateNum(cpuTemp, cpuTempPrev, cpuTempX, cpuTempY, cpuTempW, cpuTempH);
  //screen.fillRect(cpuTempX, cpuTempY, cpuTempW, cpuTempH, COLOR_RGB565_BLACK);
  // Draw CPU temp
  //screen.setCursor(cpuTempX, cpuTempY);
  //screen.print(cpuTemp);
}


// Re-paint only parts needed, not the whole bar
void rePaintBar(int oldW, int newW, int barY, int color, int bgColor) {
    if (newW > oldW) {
      // Paint new parts of bar
      screen.fillRect(paddingLeft+oldW, barY+1, newW-oldW, barH-2, color );
    } else if(newW < oldW) {
      // Clear old parts
      screen.fillRect(paddingLeft+newW, barY+1, oldW-newW, barH-2, bgColor );
    }

    //
    if (newW == 0) {
      screen.fillRect(0+paddingLeft, barY+1, 1, barH-2, color);
    }
}




int16_t getBarWidthPx(String loadStr)
{
  int load = loadStr.toInt();
  float px = (320.0 - (float)paddingLeft - (float)paddingRight - 1.0) * (load/100.0);

  int16_t rounded;
  rounded = int16_t(px + 0.5);
  //if (rounded > 2) {
  //  rounded = rounded-2;
  //}
  //Serial.println(rounded);
  return rounded;
}



String formatValueStr(String valueStr) {
  valueStr.trim();
  int load = valueStr.toInt();
  String newStr = "";

  if (load < 10) {
    newStr = "  " + valueStr;
  } else if (load >= 10 && load < 100) {
    newStr = " " + valueStr;
  } else {
    newStr = valueStr;
  }

  //newStr = newStr + "%";
  return newStr;
}


String formatMemUsed(String memUsed) {
  String newStr = "";
  //Serial.println("memUsed: " + memUsed);

  if (memUsed.length() <= 3) {
    newStr = " " + memUsed;
  } else {
    newStr = memUsed.substring(0, 4);
  }

  return newStr;
}

// https://stackoverflow.com/questions/9072320/split-string-into-string-array
String getValue(String data, char separator, int index)
{
  int found = 0;
  int strIndex[] = {0, -1};
  int maxIndex = data.length()-1;

  for(int i=0; i<=maxIndex && found<=index; i++){
    if(data.charAt(i)==separator || i==maxIndex){
        found++;
        strIndex[0] = strIndex[1]+1;
        strIndex[1] = (i == maxIndex) ? i+1 : i;
    }
  }

  return found>index ? data.substring(strIndex[0], strIndex[1]) : "";
}

// Draw 4 rectangles to create an empty rectange with border width
void drawBorderRect(int x, int y, int w, int h, int color, int bW) {
  // drawRect(x, y, w, h, color)

  //screen.fillRect(x, y, bW, h, color); // Left
  //screen.fillRect(x+w-bW, y, bW, h, color); // Right
  //screen.fillRect(x, y, w, bW, color); // Top
  //screen.fillRect(x, y+h-bW, w, bW, color); // Bottom

  // Square-size bottom-left border
  //screen.fillRect(x, y, bW, h, color); // Left
  //screen.fillRect(x, y+h-bW, h/2, bW, color); // Bottom, square sized

  // Small bottom-left border
  //screen.fillRect(x, y+h/2, bW, h, color); // Left
  //screen.fillRect(x, y+h-bW, h/2, bW, color); // Bottom, square sized

  // Draw small hooks to left and right border
  int hookLen = 10;
  //screen.fillRect(x, y, hookLen, bW, color); // Top-left
  //screen.fillRect(x, y+h-bW, hookLen, bW, color); // Bottom-left
  //screen.fillRect(w-hookLen, y, hookLen, bW, color); // Top-right
  //screen.fillRect(w-hookLen, y+h-bW, hookLen, bW, color); // Bottom-right

  // Centered left border
  int margin = 20;
  //screen.fillRect(x, y+margin, bW, h-margin*2, color); // Left
}

void disconnectScreen() {
  screen.fillScreen(COLOR_RGB565_RED);
  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.fillScreen(COLOR_RGB565_RED);
  screen.fillScreen(COLOR_RGB565_BLACK);
  screen.fillScreen(intelBlue);
  screen.setTextSize(5);

  screen.setTextColor(intelBlue);
  int shadowSize = 5;
  int rowH = 60;
  screen.setCursor(shadowSize, shadowSize);
  screen.println("Serial");
  screen.setCursor(shadowSize, rowH+shadowSize);
  screen.println("disconnect");
  screen.setCursor(shadowSize, rowH*2+30+shadowSize);
  screen.println("Restarting...");


  screen.setTextColor(intelBlue, COLOR_RGB565_WHITE);
  screen.setCursor(0, 0);
  screen.println("Serial");
  screen.setCursor(0, rowH);
  screen.println("disconnect");
  screen.setTextColor(COLOR_RGB565_WHITE);
  screen.setCursor(0, rowH*2+30);
  screen.println("restarting");

  delay(2000);
  screen.fillScreen(COLOR_RGB565_BLACK);
  setup();
}
